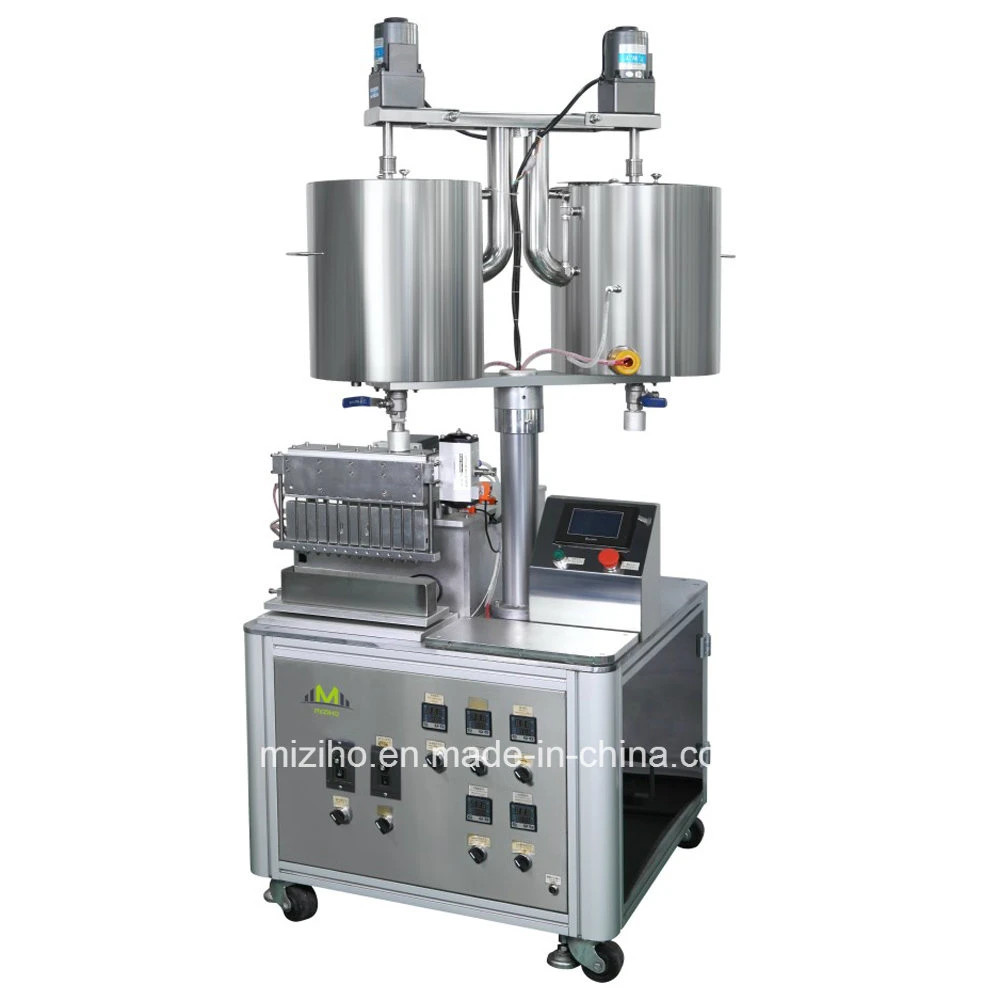

Lipstick Filling Machine 12 Holes Filling Machine Lipstick Production Equipment

Lipstick filling machine 12 holes filling machine lipstick production equipmentI. APPLICATIONUsed to fill various lipstick,lip gloss products and other creamy products that need to be heated,even if material is with Glitter P

Featured Products

Lipstick filling machine 12 holes filling machine lipstick production equipment
Lipstick Filling Machine 12 Holes Filling Machine Lipstick Production Equipment
Lipstick Filling Machine 12 Holes Filling Machine Lipstick Production Equipment

I. APPLICATION
Used to fill various lipstick,lip gloss products and other creamy products that need

to be heated,even if material is with Glitter Powder.

II. FEATURES

 1.Barrel volume is 20L, temperature and mixing speed can be adjustable.

 2.Piston filling system, motor diver, filling and sucking speed can be adjustable,

   10 pieces one time and with mold lifting devise.

 3.Hopper is with mixing system which controlled by motor.

 4.Mold lifting system adopt stepper motor control with stable lifting speed.

 5.High precision: 10PCS±0.1S

 6.With human-computer interface operating system, PLC control.

 7.This machine can be matched with tunnel freezer and mold dismounting machine.

III. SPECIFICATION

Model

MZH-F-120ml

Power Supply

AC220V/50Hz

Body Material

T651+SUS304

Filling speed

6~9 Second/mold

Weight

200kg

Dimension

600*700*2000mm

IV. MAIN PARTS LIST

Name

Brand

Origin

Mixing Motor

OUBANG

Suzhou,China

Lifting Motor

OUBANG

Suzhou,China

Heating Plate Cylinder

BANGYE

Shanghai, China

Filling Cylinder

BANGYE

Shanghai, China

PLC

MITSUBISHI

Japan

Touch Scream

WEILUN

Taiwan

Enerkeeper

OMRON

Japan

Switch

SCHNEIDER

France

Barrel Material

SUS304

China

Valve Carrier

SUS304

China

Support Frame

Aluminum Alloy

China




 Machinery Main Parts

Lipstick Filling Machine 12 Holes Filling Machine Lipstick Production Equipment


       Our Factory
Lipstick Filling Machine 12 Holes Filling Machine Lipstick Production Equipment
The Main Project
Lipstick Filling Machine 12 Holes Filling Machine Lipstick Production Equipment
After Sale Service

1. Warranty time: One year guaranteed for quality, product whole life service any damage except the wrong operation during warranty. Period is repaired freely, But the travel and hotel expenses should be count on buyer.
2. Commissioning services: The product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Traning Services: Our engineers will train your staff in your factory or video to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4. Manintenance Services: Any malfunction happened, Once you inquiry us, We will reply you within 24 hours.
5. The File: The manual specification, report of the material which used to the equipment and other documents video related to GMP authentication information will be provided by us.



FAQ

1. Q: Are you factory or trading company?
    A: We are the professional manufacture of cosmetic machinery in China more than 10years.
2. Q: Where is your location?
    A: Company and Showroom located in Guangzhou china, Factory located in Jiangsu and Shanghai
          Province.

3. Q: Are your engineer be able to serve in oversea?
    A: Yes, we have a lot of experience install the machine in oversea.
4. Q: What is your material of your product?
    A: adopt with full stainless steel 304-2b and 316L
5. Q: How does your factory do regarding quality control?
    A: Two years spare parts,and full-life service of our machinery.

Our Company to customer satisfaction for the development of three goals: Product quality, Product technology and After-sales service.
